Architectural Takeaways & Engineering Rules
- Proportional Sizing Formula: Add foyer room length and width in feet to determine proportional fixture diameter in inches (e.g., 18 ft + 14 ft = 32-inch minimum chandelier diameter).
- Vertical Clearance Rule: Maintain a minimum of 9 feet (108 inches) from finished floor to the fixture base in double-height spaces, centering the sculptural body with second-story sightlines.
- NEC 314.27(A)(2) Structural Code: Fixtures weighing over 50 lbs (23 kg) strictly require heavy-duty steel fan-rated electrical boxes or direct lag-bolt anchoring into solid ceiling joist framing with secondary aircraft safety cables.
- Color Temperature Standard: 2700K Architectural Warm White illumination with 95+ CRI provides continuous mineral refraction across high-ceiling vestibules without cold glare.
A grand two-story entryway serves as the architectural threshold of a luxury residence. Unlike single-story entry halls where lighting functions primarily as task orientation, double-height foyers (typically spanning 16 to 22 feet in vertical volume) demand a sculptural anchor that organizes vertical sightlines from both ground-floor arrival points and second-story mezzanine walkways.
1. Proportional Sizing Formula: Balancing Diameter in High-Volume Spaces
Selecting a foyer chandelier that looks appropriately scaled rather than dwarfed by double-height drywall requires calculating room proportions using standard architectural sizing guidelines. The standard interior formula states:
Fixture Diameter (in inches) = Room Length (in feet) + Room Width (in feet)

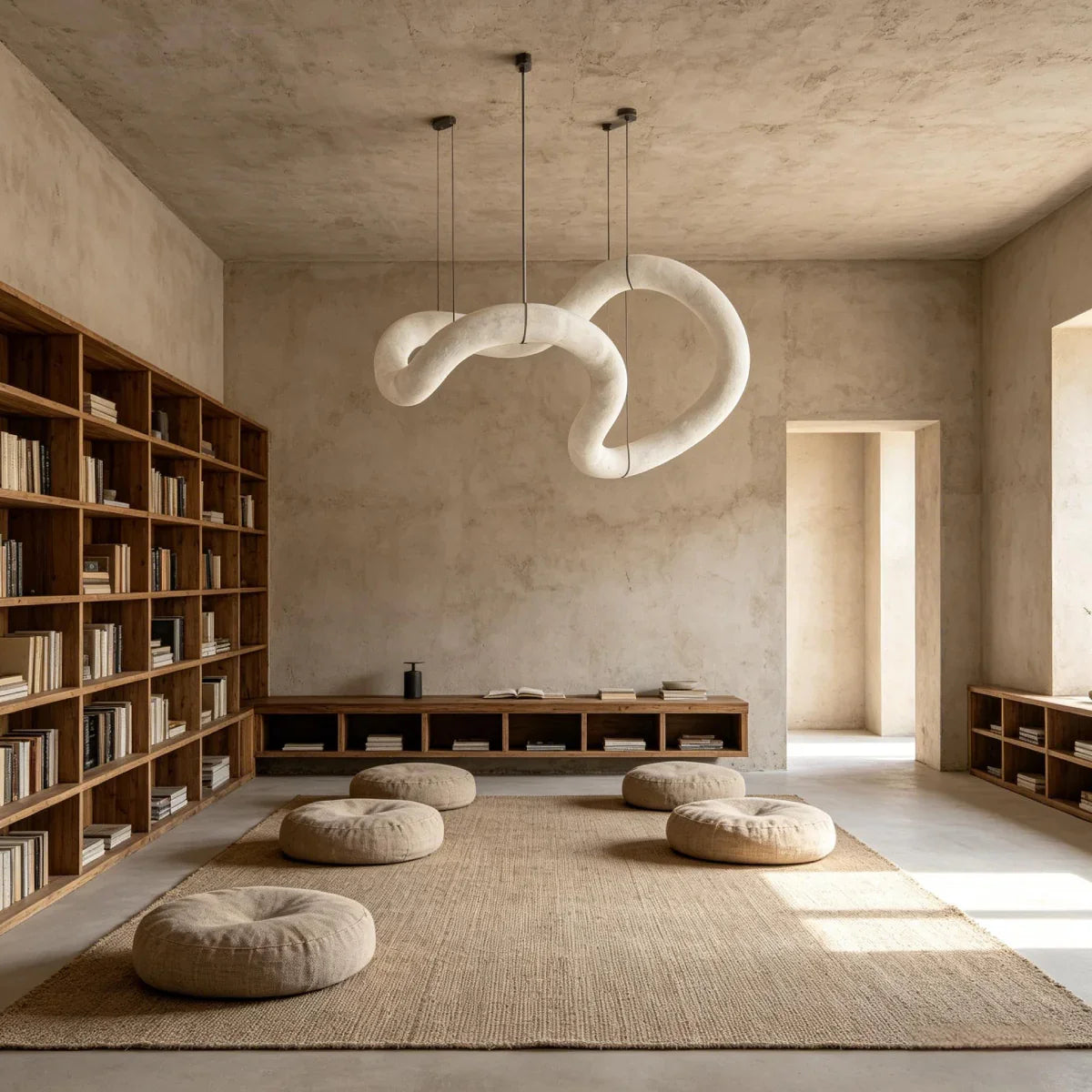

For an entry foyer measuring 16 feet by 20 feet, the baseline proportional diameter is 36 inches. However, in double-height volumes exceeding 18 feet, vertical mass is equally critical. For vertical heights, multiply total ceiling height by 2.5 to 3 to calculate ideal fixture vertical height in inches (e.g., an 18-foot ceiling supports a chandelier with 45 to 54 inches of vertical presence). Fixtures such as the Ethereal Wave Alabaster Chandelier combine tiered horizontal sweeps with organic vertical drop, preventing the open volume above the entryway from reading as empty void.
2. Vertical Headroom & Sightline Placement: The 9-Foot Rule
In traditional 8-foot to 10-foot ceilings, code requires 7 feet of head clearance. In double-height entryways, maintaining 9 feet to 10 feet of finished floor clearance is the professional benchmark. This extra vertical elevation creates spatial breathing room beneath the luminaire and frames dramatic perspectives when viewed through second-floor balustrades.
If your grand foyer includes a prominent front window above the front door, align the chandelier center point directly with the exterior window centerline. This provides balanced curb-appeal illumination from the driveway while preventing the fixture from obstructing the door swing below.
3. Structural Ceiling Engineering: NEC 314.27(A)(2) & Joist Blocking
Architectural mineral fixtures like natural Spanish alabaster and cast brass chandeliers carry significant structural mass. Standard plastic or lightweight drywall junction boxes are legally rated for only 50 lbs (22.7 kg). Under National Electrical Code (NEC) 314.27(A)(2):
- Up to 50 lbs: Listed standard electrical boxes marked for luminaire support may be used.
- 50 lbs to 110 lbs: Must be mounted to a heavy-duty ceiling fan-rated box marked for fixture weight, or anchored with solid 2x6 timber joist bridging.
- Over 110 lbs: Fixture weight must be transferred directly to structural building joists using threaded steel rods, lag screws, and secondary aircraft-grade stainless steel safety cables.
When installing cascading suspension statements such as the Strand Necklace Chandelier, always verify framing orientation with your general contractor before drywall close-in. Solid wood blocking spanning two structural ceiling joists distributes concentrated load points evenly across the framing system.
4. Engineering & Material Comparison: Natural Alabaster vs. Hollow Brass
High-ceiling grand foyers present unique acoustic and optical challenges. The table below outlines how architectural materials perform in open two-story spatial volumes:
| Performance Metric | Natural Aragon Alabaster | H65 Solid Brass Casting | Pressed Acrylic / Resin |
|---|---|---|---|
| Average Fixture Mass | Heavy (45–95 lbs) | Moderate to Heavy (35–75 lbs) | Light (12–25 lbs) |
| Light Dispersion Quality | Internal crystalline refraction; 0% hot spots | Directional task reflection with warm tone | Flat translucent glow; prone to glare |
| Color Temperature Match | 2700K Architectural Warm White (CRI 95+) | 2700K Warm White with living patina reflection | Variable; degrades under UV light |
| Ceiling Box Requirement | Direct Joist Lag-Bolt or Fan-Rated Steel Box | Heavy-Duty Fan-Rated Steel Box | Standard 50 lb Drywall Box |
5. Multi-Level Lighting Strategy: Coordinating Upper and Lower Lumens
Relying solely on a central ceiling chandelier to illuminate a two-story grand entry leaves corners dim and casts unflattering overhead shadows on entry consoles. Complete your foyer scheme with layered perimeter sconces from the curated JINSHE Entry & Foyer Collection mounted 60 to 65 inches above the finished floor.
Connecting all foyer fixtures to universal reverse-phase TRIAC dimmers allows homeowners to shift from bright 100% arrival illumination for evening guests down to a subtle 15% warm nightlight glow after midnight.
Frequently Asked Questions (FAQ)
How high should a chandelier hang in a 20-foot foyer?
In a 20-foot ceiling foyer, the base of the chandelier should hang roughly 9 to 10 feet above the finished floor. If the entryway features an open staircase, ensure the lowest point of the chandelier remains at least 7 feet above the nearest stair tread to preserve walking clearance.
Can I hang a heavy alabaster chandelier on standard drywall?
No. Drywall anchors are strictly prohibited for chandeliers over 20 lbs. Natural stone fixtures weigh between 45 and 95 lbs and must be anchored into solid ceiling joist framing with through-bolts or supported by a heavy-duty fan-rated steel junction box conforming to NEC 314.27(A)(2).
What color temperature is best for a luxury entryway?
Architectural 2700K Warm White is the industry standard for residential luxury entries. It enhances the natural amber veins of Spanish alabaster and creates a welcoming, serene transition from the outdoors without the sterile glare of 3500K or 4000K commercial lighting.
